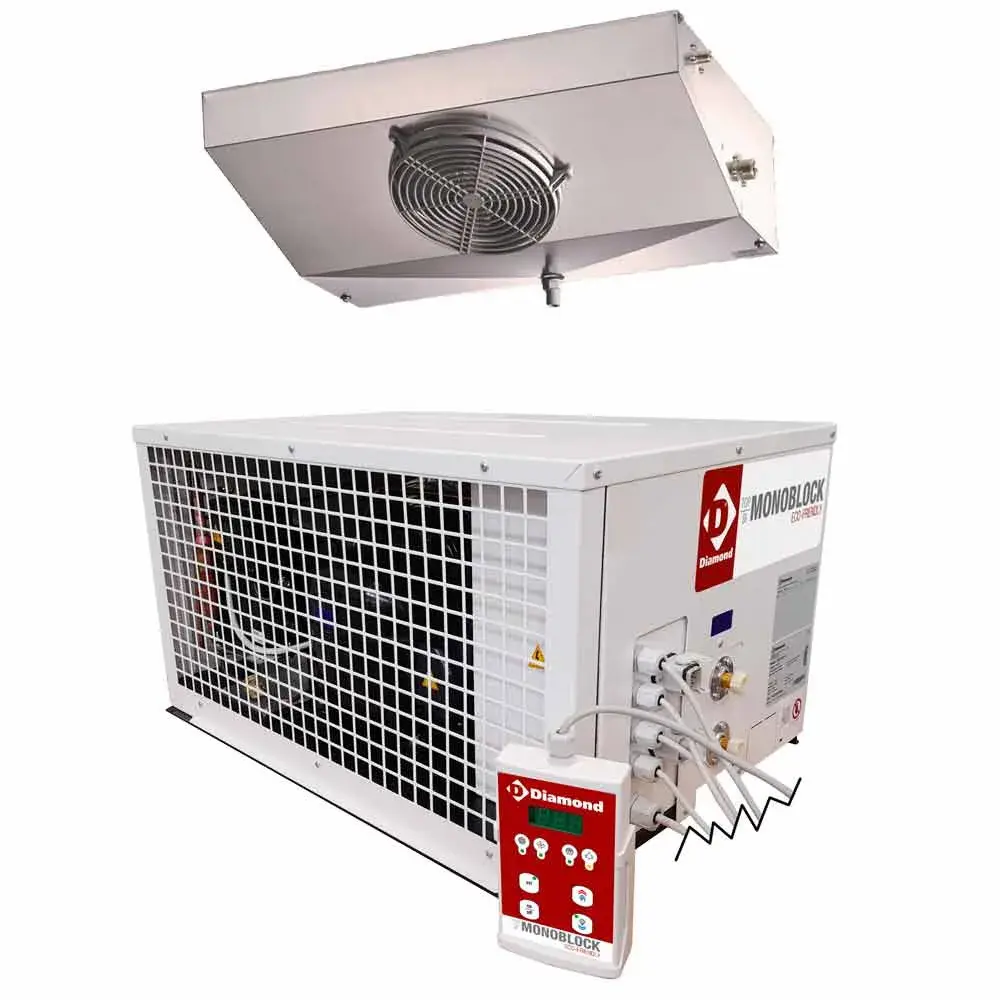

Refrigerated group “By-block” T° -15°-25°

• Cooling capacity rendered 824 (W/f) for chamber volume 5,0 m³/5000L (internal T° -20°C and external T°+32°C).
• Refrigerant expansion by thermostatic valve.
• Low-temperature (HN) units are supplied with a cable for connecting the door heater.

• Bi-block refrigeration units.
• Thanks to its design, the condensing unit is ideal for outdoor installation and can be placed anywhere, on the floor, ceiling, wall, etc.
• Supplied as standard with 2 wall brackets.
• Hoses (pre-loaded) and cables are supplied for connection within a 5m radius (10m optional).
• All units are supplied as standard with a high-pressure switch and a KVL valve, as well as cables for the door and light microswitches.
• Separate touch-sensitive microprocessor control panel connected to the unit by a 10m cable.
• Automatic defrosting by electric resistance, water drain located below the evaporator. The evaporator drain is fitted with a resistor to prevent ice forming.
• Unit certified for climate class 5 (40°C temperature - 40% humidity).
• R452a refrigerant gas.
• Window light supplied as standard with microswitch for door.

INFO:
Warning: as standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, then, a compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R) must be provided. In this case, the operating temperature cannot be lower than -5°C.

PLUS:

• Easily removable panels for easy access when servicing.
• Electric resistance defrosting.
• All units are supplied with a high-pressure switch as standard. Negative units are fitted with a thermostatic valve.
